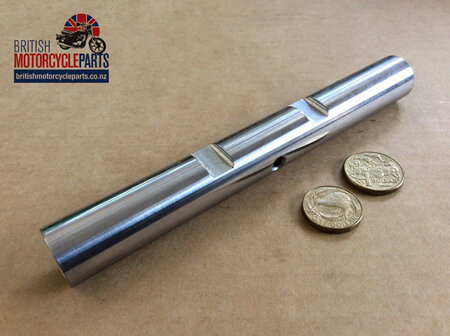

06-4077 Swing Arm Spindle 0.005 Oversize

06-4077 Swing Arm Spindle 0.005 Oversize – Commando

Genuine Norton Commando 750cc & early 850cc Swinging Arm Spindle.

Size: 0.005” Oversize

OEM: 06-4077

Note: 06-4077 can be used to replace spindles on the earlier Commando models (06-0453), although the slots for the cotters are not used if you have the original cradle. You will also need to ream your existing cradle and new bushes, this is best done when the machine shop have the spindle.

The hole through centre changed on the later versions, most probably to save them removing material that they did not need to.
